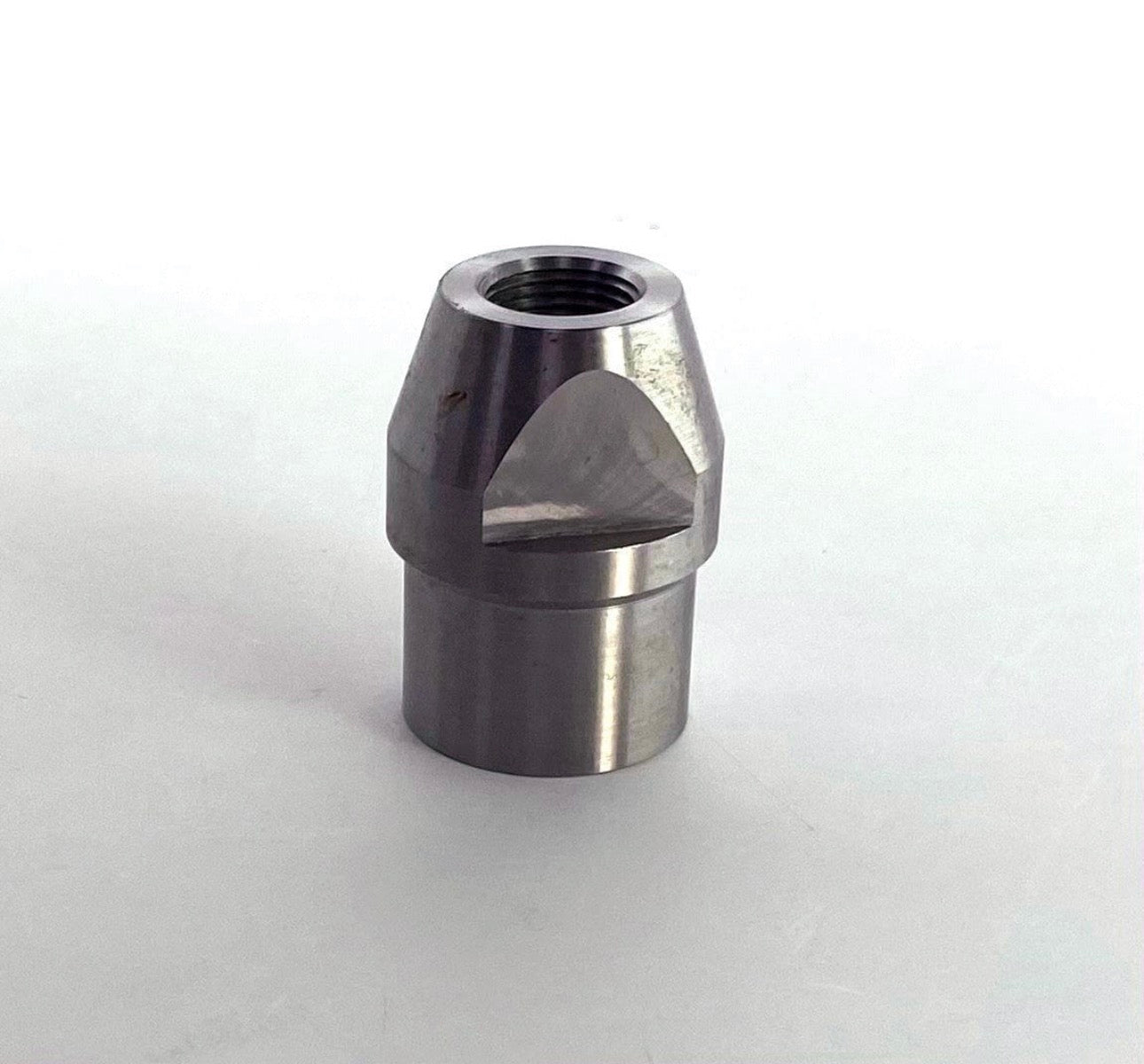

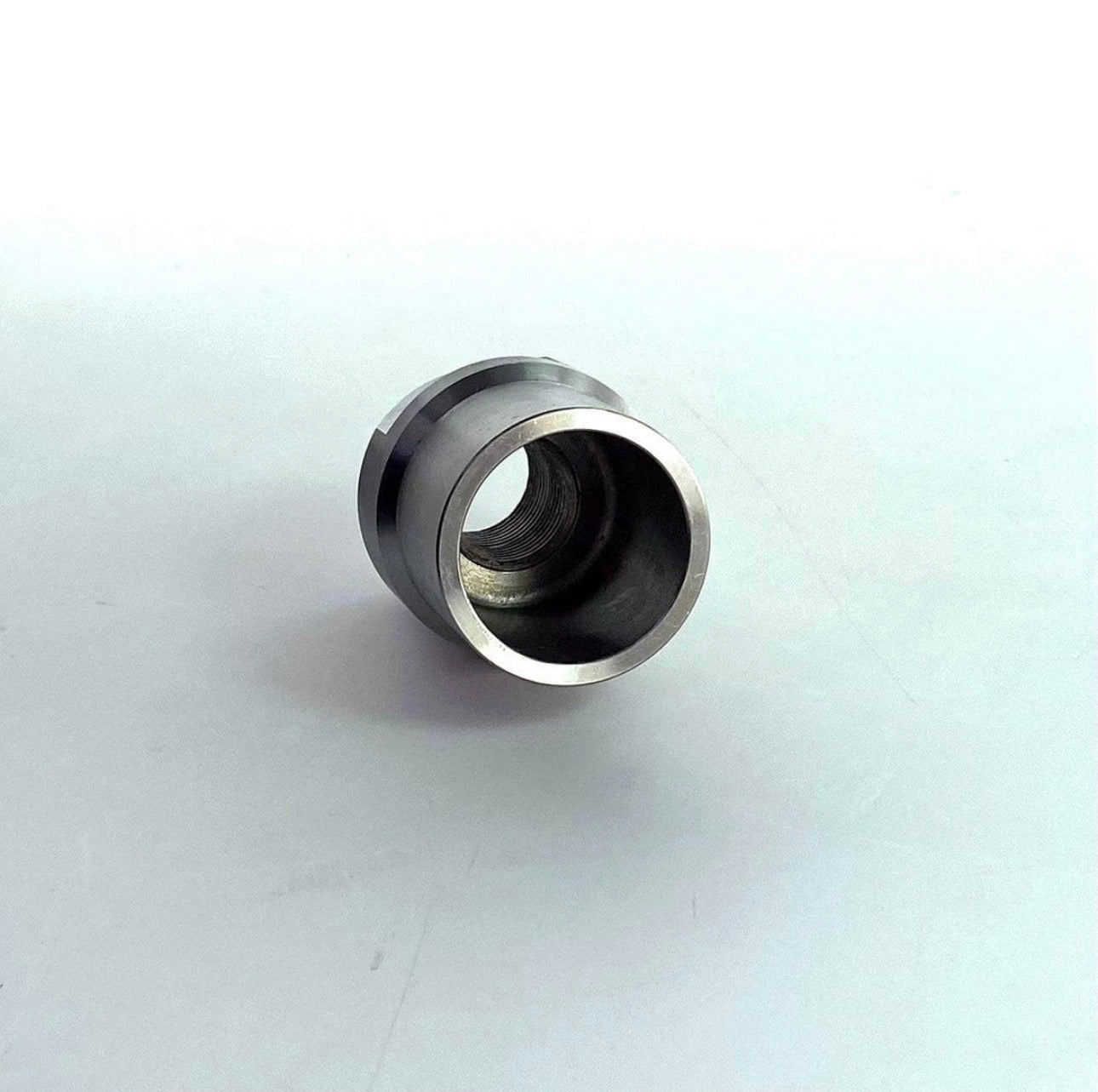

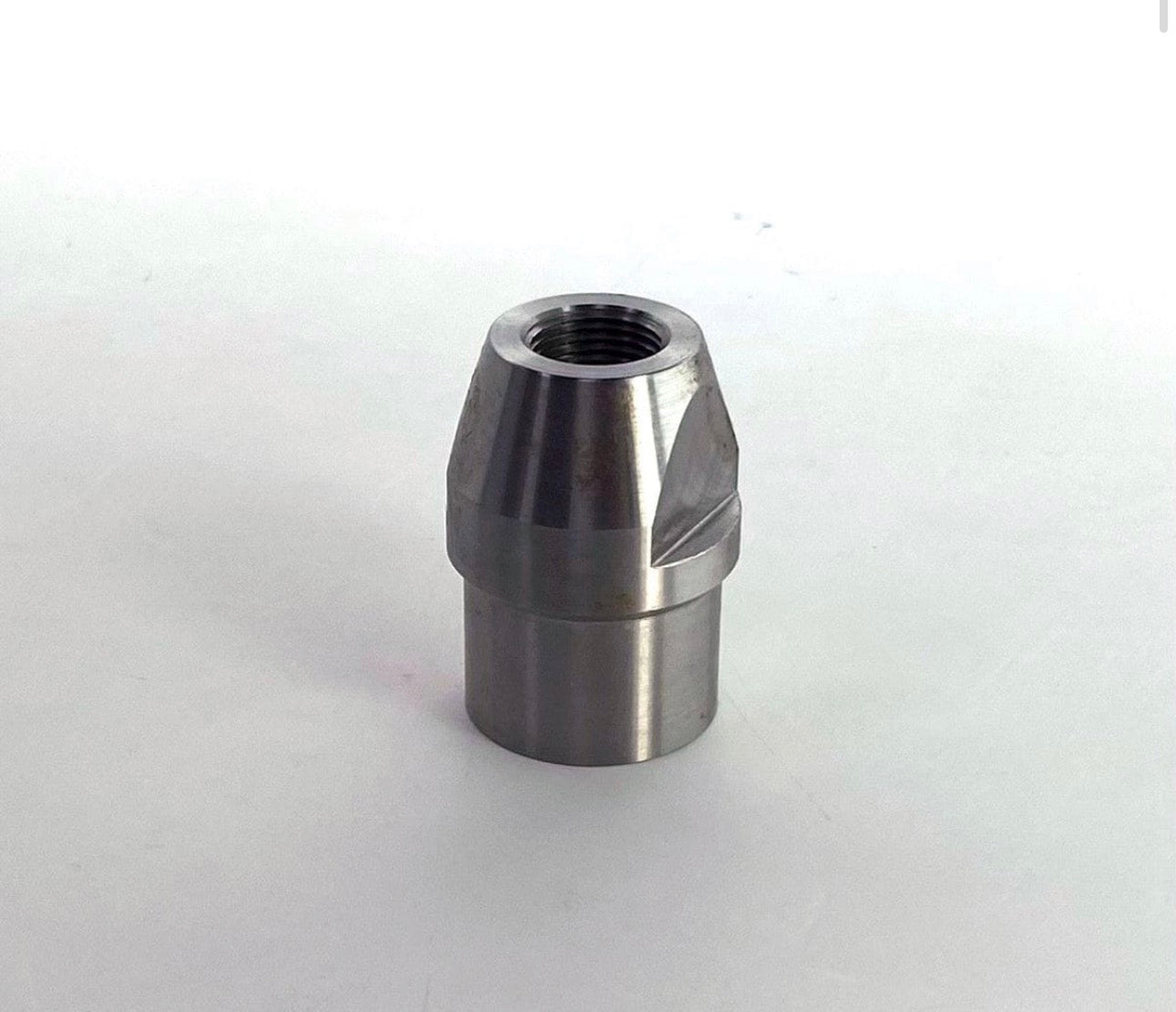

Tube End Adapter Weld Bung 3/4-16 Left Hand for 1-5/8" x .083" Tubing

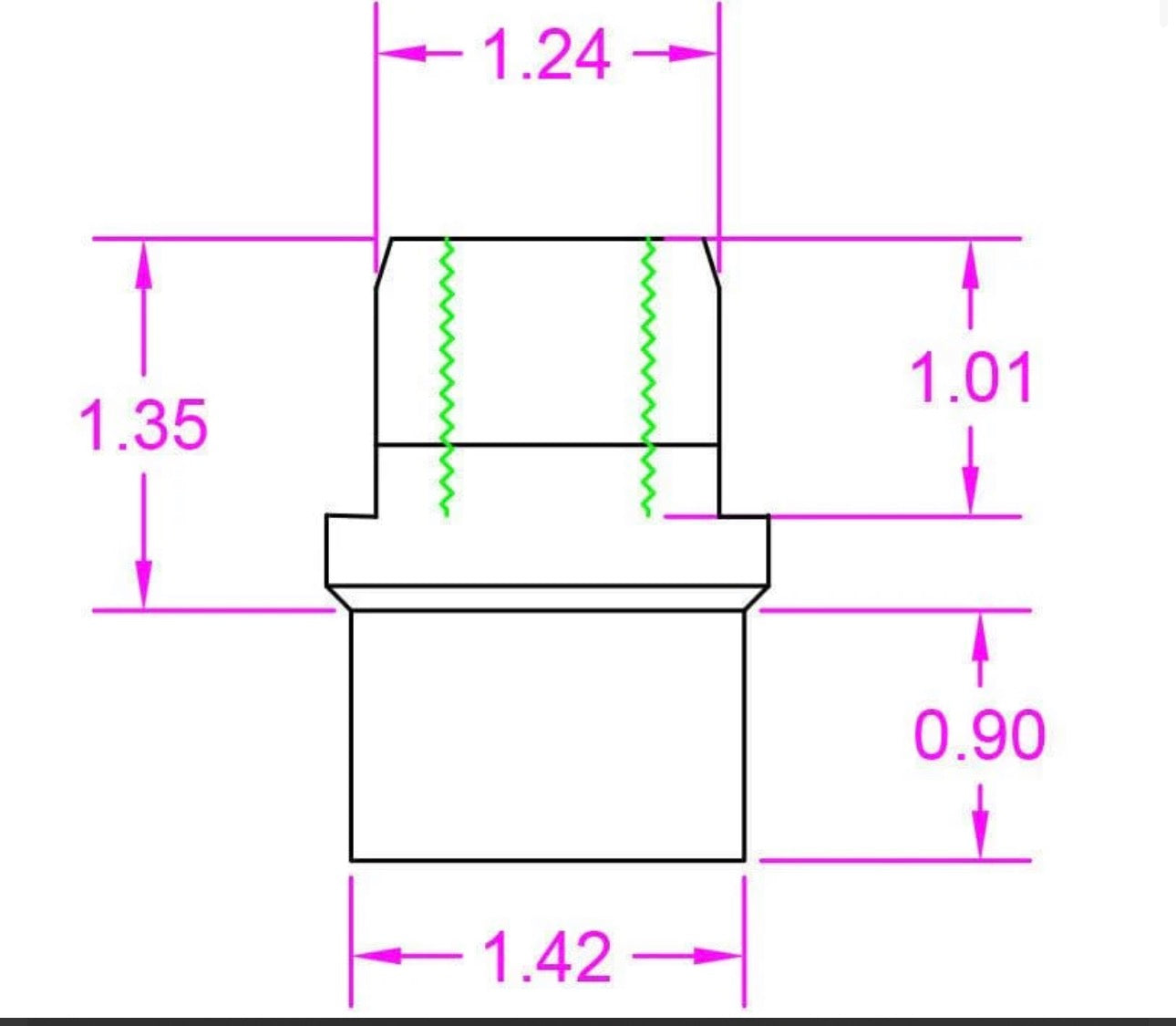

UPR CNC Machined Steel Tube Ends are the same ones used in our Pro Series and Extreme Series suspension components. Tube end is machined to work with 1-5/8" OD x .083" wall tubing and accepts a 3/4-16 Left Hand Heim Joints. Tapered edge where tubing butts up to fitting creating a groove allowing for a solid welding area. .90" long shoulder for a positive fit into the tubing and allows the tubing to be drilled for rosette welds.



Chrome Moly Heim Joints available in drop down box above.



Requires welding.

» 3/4-16 Left Hand Female Thread

» Fits 1-5/8" (1.625") x .083" Wall Tubing

» CNC Machined (Not Cast) 1018 Mild Steel
» Tapered Edge creating a groove for a strong weld

Universal fitting can be used for multiple applications and or projects.
