3.0L Ford Explorer ST Stage 1/2/3/X Bundle

STAGE 1:

WHP Potential on Gasoline:

875 WHP*

WHP Potential on E85:

650 WHP*

Tune Requirement:

Yes

Recommended Tuning Suite:

HP Tuners

HPFP Flow Rate Increase Over Stock:

47%

Injector Flow Rate Increase Over Stock:

11%

Max Operating Pressure:

248 bar / 24.8MPa / 3600psi



STAGE 2:

WHP Potential on Gasoline::

850 WHP*

WHP Potential on E85::

750 WHP*

Tune Requirement::

Yes

Recommended Tuning Suite::

HP Tuners

HPFP Flow Rate Increase Over Stock::

47%

Max Operating Pressure::

248bar / 24.8MPa / 3600psi

Injector Flow Rate Increase Over Stock::

24%

Injector flow rate:

15.7 g/s @ 100 bar



Stage X:

HPFP Flow Rate Increase:

60%

Injector Flow Rate Increase:

96%

WHP potential on gasoline:

931 WHP

WHP potential on E85:

752 WHP

Tune required:

Yes

Supported Tuning Suites:

HPTuners

Stage 1
What sets Nostrum apart:

• Direct Replacement
• OEM equivalent spray pattern
• Limited Lifetime Warranty
• Installation guide provided
• Tuning guide available
• 11% Injector Flow rate increase over stock
• Ethanol Compatible
• 47% Flow rate increase over the stock HPFP (20% larger than XDI evo HPFP )
• Custom formed hard line for OEM-like fitment
• Fully stainless welded construction on the HPFP (zero chance of leakage)



Late for soccer practice? The Nostrum HPFP upgrade is the first step to unlocking more power in your Explorer ST. Flowing 47% more fuel than the stock pump, our HPFP opens up a whole new world of possibilities and benefits. That additional flow allows for more torque delivery and more boost earlier in the rev range, giving you noticeable gains on even a mostly stock vehicle.

Take full advantage of your upgraded Nostrum HPFP by pairing it with Nostrum Stage 1 injectors. The stock injectors simply can’t keep up with the massive amout of fuel that our HPFP is capable of moving. Our Stage 1 Injectors give you 11% more flow than the stock injectors, raising the ceiling on how much power you can make. The Stage 1 bundle is great for anyone with minor bolt-ons and stock turbos, who is just looking for some more pep out of their daily driver. If you plan on going with bigger turbos or potentially even a built engine, the Stage 2 bundle is what you are looking for!

Every Nostrum manufactured part is backed by a limited lifetime warranty. Our products are comprehensive solutions that come complete with everything you need inside the box, including detailed installation instructions. Tuning guides are also available for your dealer or tuner. We have customer service and calibration engineers on staff to provide you with any support that you may need, from installation to tuning.



Dyno graph sponsorship results:

 We set the Explorer ST HP record on our dyno using our HPFP and Stage 1 Injectors, among other mods, making 707 AWHP. This vehicle had a completely custom turbo setup and many one-off parts.



*Horsepower and Torque numbers are approximate and can vary significantly depending on numerous factors including what supporting upgrades are done to the vehicle, ambient temperature, elevation, road surface, tire selection & condition, fuel octane and quality, vehicle weight, and more.  The advertised numbers herein are based on optimal conditions and utilizing proper supporting modifications.  Your results may vary.

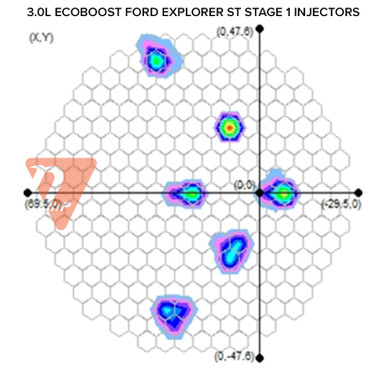

Why is spray pattern important?

While increasing flow rate is critical to making more horsepower, there are other factors to consider when choosing fuel system upgrades. A bigger injector isn’t always a better injector! It can flow a large volume of fuel at WOT, but if the spray pattern is poor, you can expect poor idle quality, poor drivability, increased knock propensity, soot, NVH (noise vibration harshness,) and tuning difficulty. Additionally, the wrong spray pattern can result in liquid fuel impinging in the cylinder walls, causing oil dilution, which increases mechanical wear to internal engine components.

Nostrum has invested significant time and resources into acquiring the equipment and machinery necessary to deliver an OEM level of quality on our injectors. Our spray patternation and arc flash machines (images below) give us an unparalleled look at how an OEM injector is designed and how it operates. Our engineers design and develop injectors to optimally interact with engine air flow inside the combustion chamber to improve fuel evaporation and create a homogenous air-fuel mixture that results in a higher combustion quality. For you, this means that you can expect our injectors to perform at their absolute best regardless of what you are asking from them, from daily driver duty to setting new ¼ mile records.

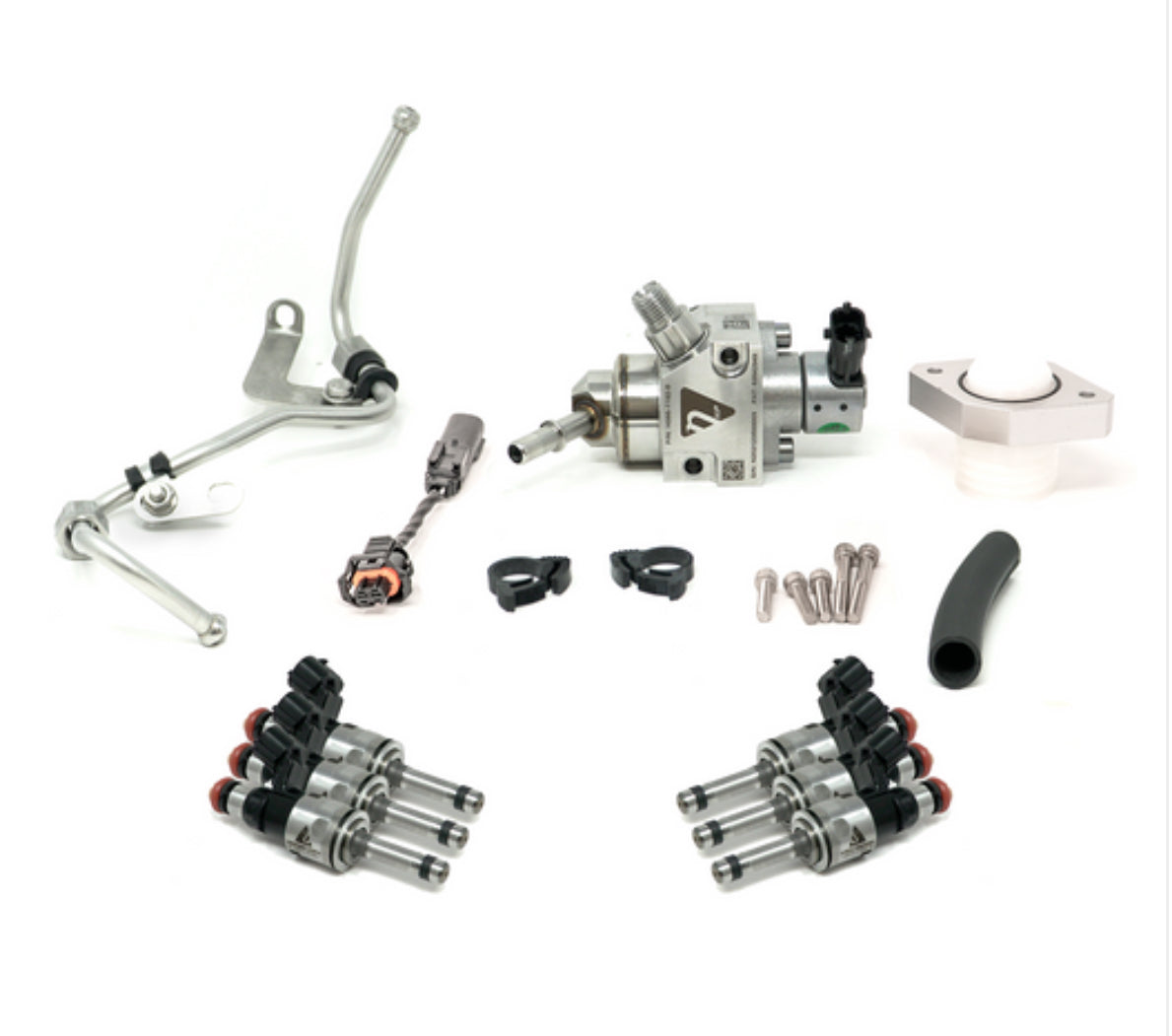

What's in the box:

• Big Bore High Pressure Fuel Pump Kit (H086-1182-1)
• 6 flow matched, Stage 1 Injectors (H703-1256)
• Stainless-steel High-Pressure Tubes with OEM fittings
• Electrical Connector Adapter harness
• CFD optimized damper housing
• Stainless-steel High-Pressure Tubes with OEM fittings
• Installation Guide



STAGE 2

Key Differentiating Features:

• Custom formed hard line for OEM-like fitment
• Fully stainless welded construction on the HPFP (zero chance of leakage)

• Injectors are a direct replacement - no adapters needed!
• OEM equivalent spray pattern
• Installation guide provided
• Tuning Guides available (dealers and tuners)
• Limited Lifetime warranty
• OEM SAE quick connect fitting (low EVAP)



Nostrum is proud to introduce our HPFP Upgrade for the 3.0 Ecoboost found in the Explorer ST! The main benefit of our HPFP is the 47% increase in flow over the stock pump, meaning you can dial in more boost earlier in the rev range and allow for a significant increase in torque. The additional fuel provided by Nostrum’s hpfp will allow you to hit peak power even sooner.

To take advantage of your now upgraded HPFP, we paired it with some bigger injectors!  Our Stage 2 injectors flow an additional 27% more fuel than the stock injectors. This is where we bring those peak gains back to the table. The Stage 2's are for those taking their build to the next level with all the bolt-ons and . If you are looking to push your Ecoboost to the absolute limit, you want the Stage 3 injectors! These are intended for those with built engines, built transmissions, and big turbos!

Every Nostrum manufactured part is backed by a limited lifetime warranty. Our products are comprehensive solutions that come complete with everything you need inside the box, including detailed installation instructions. Tuning guides are also available for your dealer or tuner. We have customer service and calibration engineers on staff to provide you with any support that you may need, from installation to tuning.



Vehicle graph sponsorship results:

Corey’s 2022 Explorer ST (FBO, NHP Stage 2 Fuel Bundle, CRP Stage 5 Hybrid Turbos) 614whp 616wtq on E60

*Horsepower and Torque numbers are approximate and can vary significantly depending on numerous factors including what supporting upgrades are done to the vehicle, ambient temperature, elevation, road surface, tire selection & condition, fuel octane and quality, vehicle weight, and more.  The advertised numbers herein are based on optimal conditions and utilizing proper supporting modifications.  Your results may vary.









STAGE 3:

This kit includes the all new Stage 3 injectors and HPFP kit for 1 great price!


What sets Nostrum apart:

• Largest 3.0L EcoBoost GDI injector available-96% larger than a factory 3.0 EB Injector
• Direct replacement
• OEM comparable spray pattern
• Limited Lifetime Warranty
• Installation guide provided
• Ethanol compatible
• Allows operation of engine at significantly reduced fuel rail pressure while still achieving very high power levels

They’re finally here! The long awaited and highly anticipated Stage 3 injectors for the 3.0L Ecoboost Ford Explorer ST are now available. With a mind-blowing increase of 96% more fuel than the stock injector, the Stage 3s are what you want when you have a built engine, larger turbos, and the desire to push them to the absolute limit.

Why Stage 3? More flow of course! One of the hurdles with DI is that as you increase pump pressure, the volumetric efficiency goes down. By lowering commanded pressure from 24 MPa to 20 MPa, the pump gains approximately 5% in flow rate that the Stage 3's are able to take advantage of! More flow, more horsepower!

Being that everything is installed like a factory part, there’s no need to worry about secondary injection controllers, filling meth tanks, clogged meth injectors, or any of the other complex solutions that remove layers of protection and safety from your engine. Our injectors operate with all the OEM ECU’s engine management system diagnostics and safety functions – resulting in a much happier and responsive system!

Inside the box, you will find everything you need to get your new injectors installed quickly, including detailed application specific instructions for a no-nonsense install. When you are ready to tune, we can get you set up with one of our trusted certified tuners, or we have injector tuning data available for your existing tuner.

Take your Nostrum Stage 3 injectors to the limit by pairing them with our HPFP upgrade kit, flowing an incredible 47% more fuel than the stock pumps! That additional fuel flow allows for significant torque increases earlier in the rev range, and provide the injectors with all the fuel they need to make more peak horsepower, when properly tuned.

Every Nostrum manufactured part is backed by a limited lifetime warranty. Our products are comprehensive solutions that come complete with everything you need inside the box, including detailed installation instructions. Tuning guides are also available for your dealer or tuner. We have customer service and calibration engineers on staff to provide you with any support that you may need, from installation to tuning.

• 2020-2023 Ford Explorer ST
• 2020-2023 Lincoln Aviator
• 2020-2023 Police Interceptor Utility

Dyno graph sponsorship results:

Horsepower and Torque numbers are approximate and can vary significantly depending on numerous factors including what supporting upgrades are done to the vehicle, ambient temperature, elevation, road surface, tire selection & condition, fuel octane and quality, vehicle weight, and more.  The advertised numbers herein are based on optimal conditions and utilizing proper supporting modifications.  Your results may vary.



Mat and Kathy's Explorer ST made 639 WHP on our Dyno on Pump E85! They went on to run a 10.67 in the quarter mile at the 2023 Shootout by Buschur Racing! See the run on Instagram here!



STAGE X:

What sets the Nostrum Stage X kit apart:

• 60% Flow rate increase over the stock HPFP (The largest HPFP available for the 3.0 Ecoboost!)
• Custom formed stainless steel hard line for OEM-like fitment
• Fully stainless welded construction on the HPFP (zero chance of leakage)
• OEM SAE quick connect fitting (low EVAP)
• Largest 3.0L EcoBoost GDI injector available - 96% more flow than a factory 3.0 EB Injector
• Direct replacement
• OEM comparable spray pattern
• Installation guide provided
• Tuning Guides available (dealers and tuners)
• Limited Lifetime Warranty




David, meet Goliath. We are more than thrilled to bring the largest HPFP ever to the Ecoboost market. This massive pump provides 60% more flow than stock, which is even more than our already impressive Big Bore kit that is already pushing Explorer ST's and Ranger Raptors past the 700 WHP mark! Estimated to support more than 750 whp on E85, this comprehensive pump kit includes everything you need to start breaking hearts and parts!

A big pump is useless without big injectors! The Goliath pump is best paired with our Stage 3 injectors. For those seeking the absolute most out of their Explorer ST, we have combined the Goliath pump and Stage 3 injectors into the Stage X bundle to create the largest DI fuel system possible. With a mind-blowing increase of 96% more flow than the stock injector, the Stage 3s are a must when you have a built engine, larger turbos, and the desire to push your Explorer to the absolute limit.

Every Nostrum part is backed by our limited lifetime warranty, offering you peace of mind and confidence in your purchase. We provide comprehensive solutions that come complete with all the necessary components and expert support, from installation to tuning, thanks to our in-house customer service and calibration engineers.

Upgrade your fuel system with confidence and take your performance to the next level with Nostrum!



What comes in the box:

• 1200-250 “Goliath” High Pressure Fuel Pump
• Pump mounting flange
• All new stainless-steel High-Pressure Tubes with OEM fittings
• AN06 to 3/8” SAE QD adapter fitting
• AN06 to ORB adapter fitting
• Plug and play wiring harness adapter

• Set of (6) Ecoboost Stage 3 Injectors
• Vibration damping sleeve w/ clips
• Installation Guide
• Warning cards

Vehicle application list:

• 2020-2024 Explorer (ST and Platinum trims)
• 2020-2024 Lincoln Aviator



Frequently ask questions:

Q: Why do your numbers say I will make less horsepower on E85 than 93 octane?

A: Great question! The numbers we list in the product descriptions are similar to the numbers a turbo charger lists for air flow. The numbers are the "fuel system capacity to generate power" regardless of the other engine system limitations (air handling, mechanical limitations, knock propensity). Essentially the numbers are calculated assuming "sufficiently large air flow", "sufficiently capable mechanical assemblies" and disregarding knock limits. The equation uses actual observed engine volumetric efficiency (when available from sponsorship vehicles) and fuel capacity (including target pressures) to calculate power. Gasoline has more energy per mass volume than E85. So the higher fuel flow capacity will mathematically generate higher power potential for a gasoline than a high ethanol content fuel. The other variables (air flow, spark, rotating assembly strength, charge cooling, mechanical assembly strength) are highly variable from build to build. This is why we state horsepower capacity for the fuel system – representing the potential of the fuel system if you have all the other aspects of your build addressed!

Q: Why don't I see horsepower gains with just a pump?

A: Fundamentally we have to look at the entire fueling system and "where" in the rpm range the limits are. DI fuel systems in stock trim are often pump limited at middle rpm (peak torque) and injector limited at high rpm (peak power). This is due to engine speed. HPFPs are mechanically driven pumps (driven by the camshaft pump lobe spinning at ½ crank speed) and are RPM (engine speed) dependent. Many of the quoted flow increases in the aftermarket are purely displacement based comparisons: where by example the big bore pump has a piston diameter X% larger than the "stock" pump or the swept displacement ((3.14*(radius)^2)*(stroke))of the pump Y% larger than the stock pump. The larger displacement of the pump really shines in low rpm, where the fuel injector has plenty of time (crank angle degrees) to inject fuel. As the engines starts to approach peak power the engine speed starts to become quite short and is limiting the injection duration (crank angle degrees) for the injection event (which is another reason why we like to increase fuel pressure up high!).



Q: I need new injector seals! Do you guys have spares?

A: While we do carry some replacement seals, we have actually found it is more cost effective and usually quicker for customers to purchase part number: CM5314 from their local Ford dealer, as it will include all of the seals that you will need for your injectors!
NOTE: Those kits only service 3 injectors, you will need to purchase 2 kits!

Recommended tuner:

• ZFG Racing

Vehicle application list:

• 2020+ Explorer (ST and Platinum trims)
• 2020+ Lincoln Aviator
• 2019-2020 Lincoln Continental
