Mustang (15-17) S550 GT4 Full Louver Kit

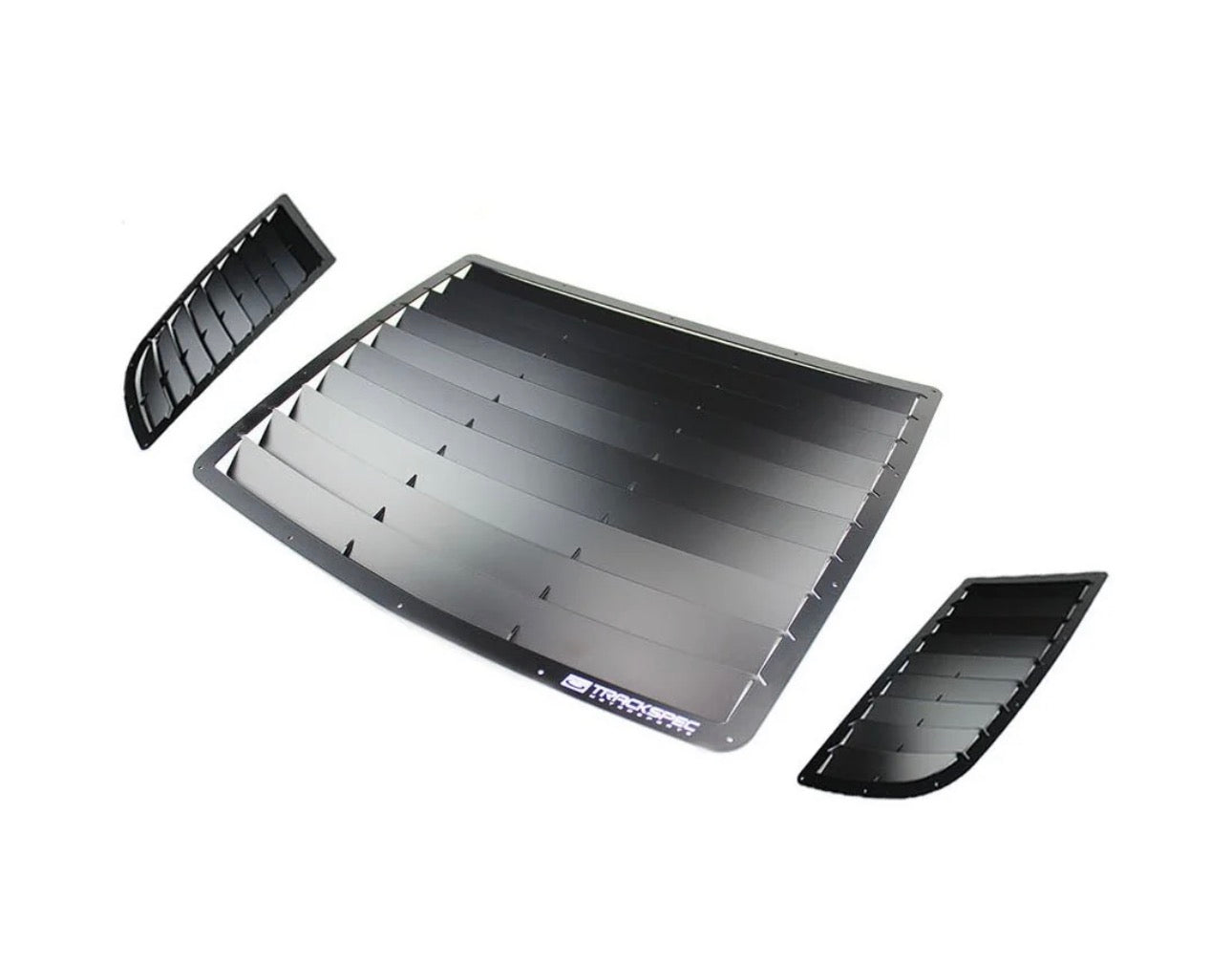

• This kit includes GT4 Style Center vent and direct replacement GT side vents.

• Also Includes backing plates for secure mounting. The Center vent REQUIRES hood cutting and drilling.

• Side Vents require minor trimming of underside of hood, but not the top side. Side vents are direct replacement drop in vents. Side vents do not require drilling.
• Fits 2015 2016 and 2017 mustang
  Dimensions:
  Center

• 18.5" Height

• 20.25" Front Width

• 22.5" Rear Width
  Side Vents

• 18.6" Height

• 4.75" Front Width

• 5.75" Rear Width

• Optimized louver design to maximize extraction flow velocities within a vehicle in motion

• Reduces under hood pressure delta to reduce front end lift and increase net vehicle downforce.

• Significantly reduces under hood temperatures by extracting heat and allowing fresh cold air to enter the engine bay.

• Maximize life of engine accessories by reducing overall operating temperature.

• Increases dense, cold air flow through radiator to promote lower coolant temperatures.

• Louver backbone design maintains hood structural rigidity.

• Contoured to fit your specific hood curve.

• Installs easily with supplied templates.

• Included in kit: Templates for cutting, rivets, washers, installation instructions, and necessary spacers for a factory quality installation.

Yes notched center SKU: S550GT4HL-B-2

No notched center SKU: S550GT4HL-B-1
