Plug N Play™ Single Valve Oil Catch Can Separator (fits 19-23 Ranger 2.3 Ecoboost) UPR

     This Ford Ranger 2.3L single valve Plug N Play™ catch can kit is the perfect fit for your engine bay. With its extremely efficient compact design and Incredible Looks. We went the extra mile to ensure you get the best quality components. Utilizing Continental Braided Hose and Billet Hose Ends to give you the Strongest and Best Performing Setup Possible. No cheap stock lines here that have been cut and spliced on! Featuring the New UPR Plug N Play™ Catch Can Fittings. So you can empty it without removing the intake cover or catch can lines from your engine. (UPR Exclusive Push Button Fittings) We have hundreds of hours testing our new 4 Stage Oil Separator to ensure the claims and results will exceed your expectations. We even double the size of the oil containment chamber. The design of this unit is more along the lines of a True Engineer and cannot be compared or confused with units that have side by inlets and outlets with screen rolled up and shoved in them. The 4 chamber technology in UPR catch cans captures and filters all the oil vapor and trash from getting into your air intake tract. That's the most important reason for a catch can in the first place! Manufactured from Domestic T-6 6061 Aluminum bar stock and finished off using only the best Diamond cutters to exceed your expectations of what a superior product should fit and look like. UPR is the largest aftermarket catch can manufacturer in the country. Continually improving our designs to stay ahead of the competition and give you the cutting edge technology of tomorrow today. We are so confident we offer an unconditional warranty on our products to let you know you can always count on UPR Products. Installs in 15 minutes

This UPR Pro Series catch can kit is shipped ready to install even if no upgrades are selected. Upgrades are available to allow you to tailor the kit to fit your needs.

Optional Parts:

UPR Billet Pro Series Check Valves:
These are larger higher flowing check valves than the standard check valve. It will increase the vacuum through the catch can and deliver better crankcase evacuation. The improved crankcase evacuation translates to increased MPG and more responsive low speed drivability. The arrow printed on the check valve will always need to face away from the catch can. There is no down side to having a check valve in a Naturally Aspirated (NA) application, and a check valve in required in boosted applications. The larger, higher flowing Pro Series Check Valve also has a hex nut on the body so you can disassemble it for inspection and cleaning.

SS Magnetic Drain Plug:
The Stainless Steel magnetic drain plug would replace the drain plug on the bottom of the catch can with an allen head plug that has a magnet embedded into it. It will attract any ferrous metal material to it so the user can inspect it. If you select this option you can not also use the Drain Line kit below.

Drain Line Kit:
The drain line kit includes a drain valve, hose and fittings needed to install the drain valve. It allows the user to relocate the drain somewhere easier to access like the wheel well opening or bumper area. If you select this option you can not also use the Magnetic Drain Plug.

**Choose either the stainless steel magnetic drain plug or the UPR drain line kit, you would not need both**

Replacement O-Rings:
Spare O-rings for the catch can cup. If the O-ring is lost, torn or if it's just time to replace it due to wear it's a good idea to have a couple of spares in the glove box.

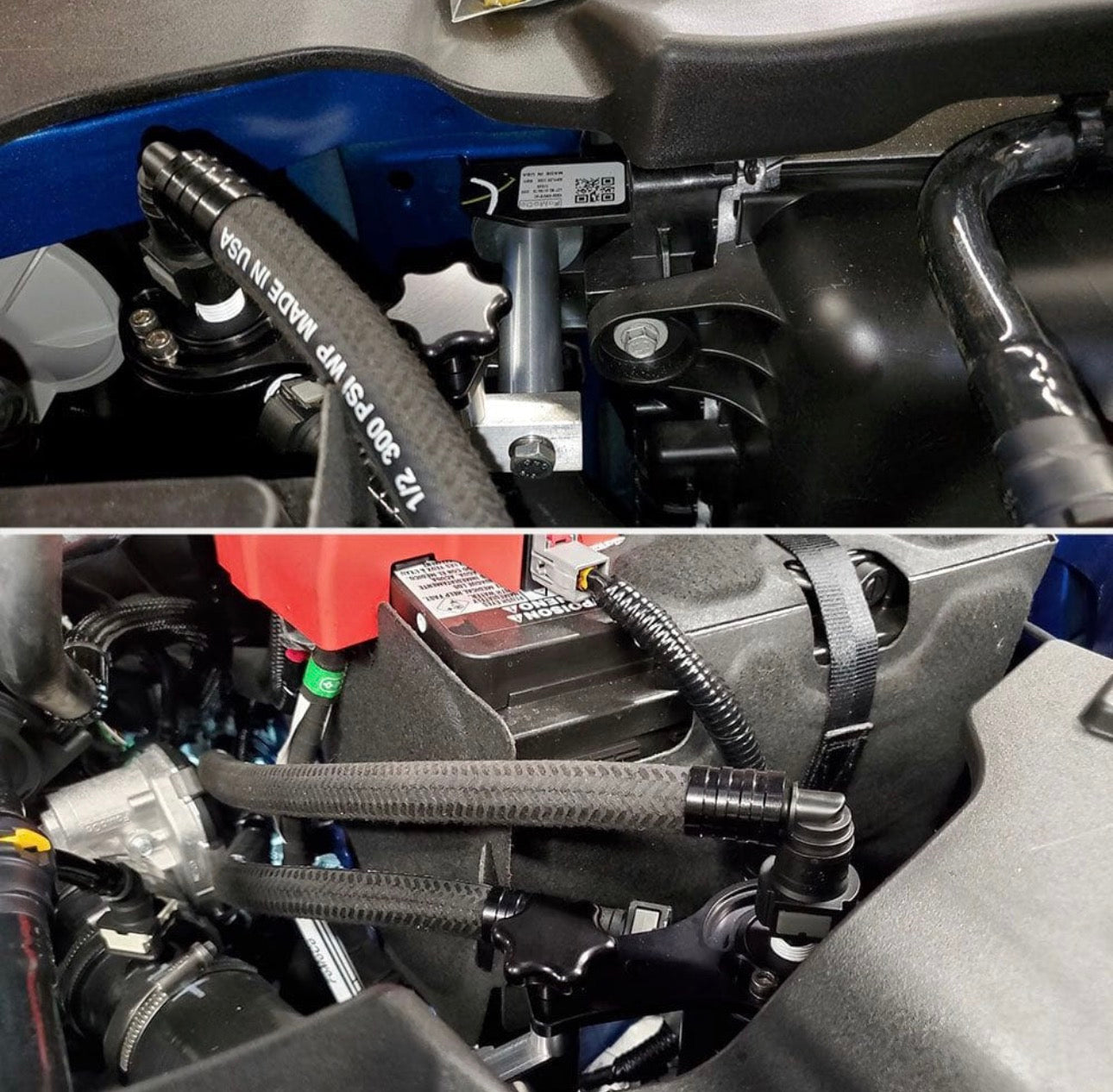

In Mid 2021 Ford moved a fitting on the intake. If you have a 2021 model year look at picture showing the placement for the 21 and newer kit.

THIS PART DOES NOT CARRY AN CARB EO NUMBER, AND THEREFORE IS FOR RACING / OFF ROAD USE ONLY.  NOT FOR SALE OR USE IN CALIFORNIA DUE TO CARB/EMISSIONS. ALL CALIFORNIA ORDERS WILL BE CANCELLED AND REFUNDED

Product Features:

» 8oz Capacity
» Show Quality Finish
» Installs in 15 minutes
» Hi-Flow Billet Check Valve
» Prevents Oil from Entering Intake
» Exclusive 4 Stage Design Traps Oil
» Innovative Diffuser Tube and Chamber
» High Quality CNC Machined Billet Aluminum
» Plug N Play™ fittings at Catch Can connections
» Innovative Adjustable Mounting Bracket (360 degree rotation)
» 5/8" Oil Resistant UPR Braided Hose included
» Improves Fuel Economy, Throttle Response & Performance
» Black Anodized Finish

Includes:

» Billet Check Valve
» OEM 5/8" Factory Connectors
» 5/8" UPR Braided Hoses
» Billet Hose Ends with Clamps
» Billet Mounting Bracket
» Plug N Play™ quick release connectors & billet fittings
» Single Valve Billet Catch Can (Exclusive 4 Stage Design)

Fits These Vehicles:

2019 2020 2021 2022 2023 Ford Ranger 2.3 Ecoboost

Made in the USA!

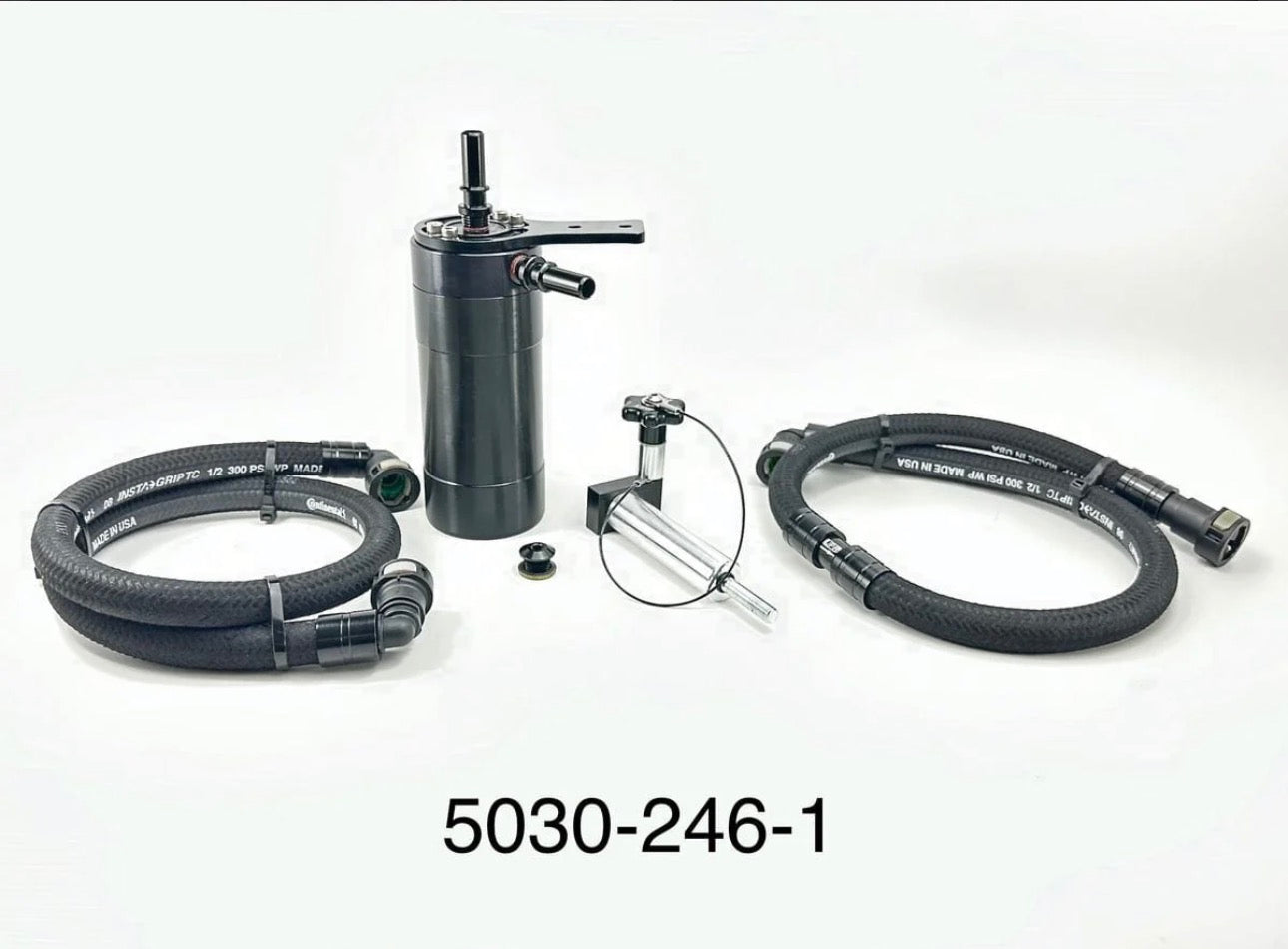

19-Mid 21 SKU: 5030-246-1

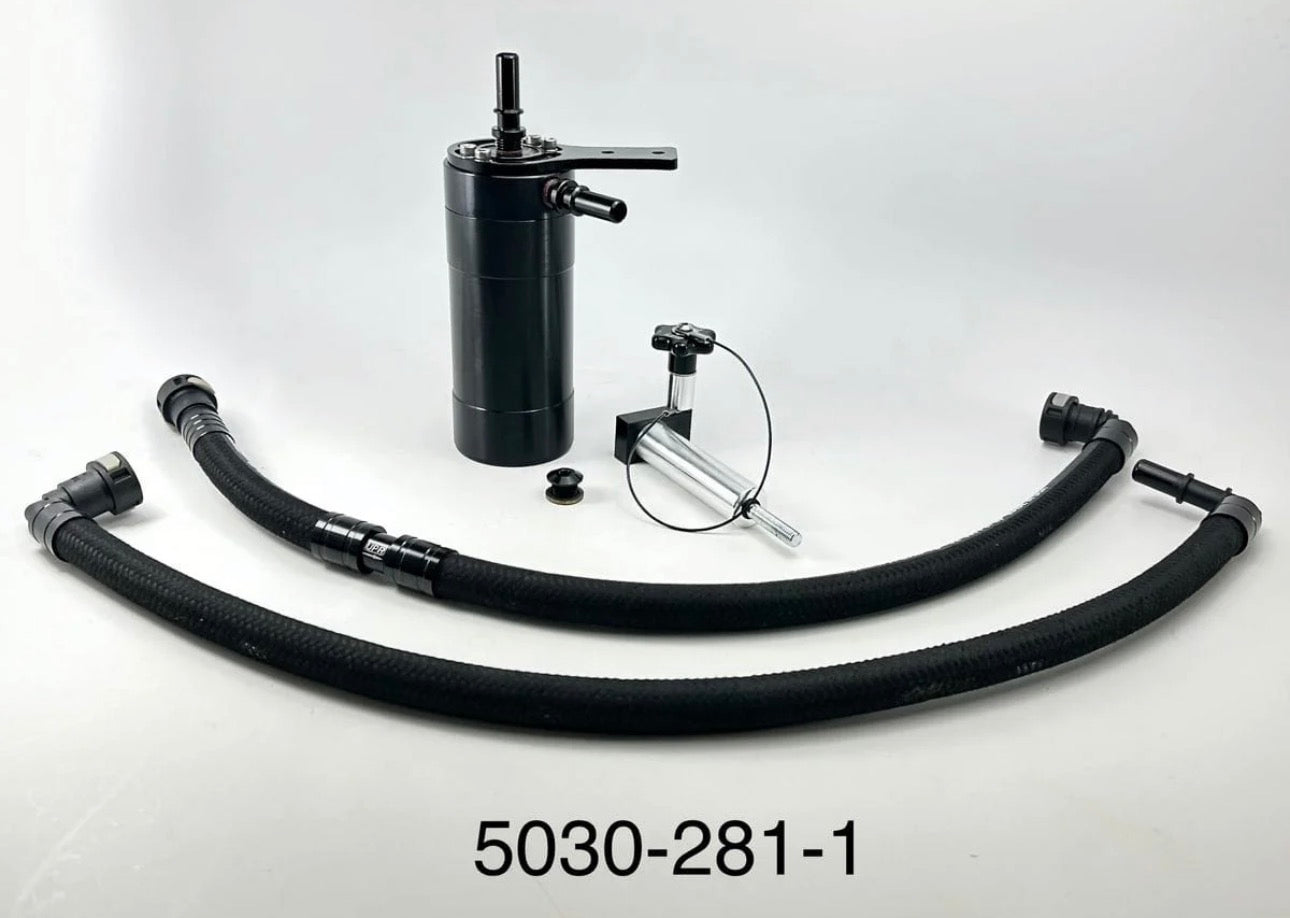

Mid 21-23 SKU: 5030-281-1
